Câmara climática dinâmica – MKF

ESCOLHER MODELO / CAPACIDADE:

Limpar

Descrição

Uma câmara de simulação ambiental da série BINDER MKF é ideal para qualquer teste de frio e calor com base em métodos de teste de temperatura e clima atuais de acordo com os padrões DIN e IEC. O equipamento padrão abrangente para esta câmara de simulação ambiental garante facilidade de operação.

Benefícios

Condições climáticas homogêneas graças à tecnologia APT.line ™
Gestão automática de água e esgoto
Umidificação de pressão com tempos de resposta rápidos
Programação abrangente e aquisição de dados
Grande janela de visualização aquecida

Características importantes

Faixa de temperatura: -40 ° C a +180 ° C
Faixa de umidade: 10% a 98% UR
Tanque de armazenamento de água integrado, 20 litros (Modelos 115, 240, 720)
4 contatos de relé de tensão zero
1 rack de aço inoxidável
Tecnologia de câmara de pré-aquecimento APT.line ™
Controlador de tela sensível ao toque intuitivo com segmento de tempo e programação em tempo real
Registrador de dados interno, os valores medidos podem ser lidos em formato aberto via USB
Proteção de condensação programável para material de teste
Janela de visualização aquecida com iluminação interna de LED
Regulação de umidade com sensor de umidade capacitativo e umidificação de vapor
BINDER Multi Management Software APT-COM ™ Basic Edition
Sistema de solução de problemas com alarmes visuais e sonoros
Porta de acesso com plugue de silicone (Modelos 56, 115, 240: 50 mm, esquerdo)
2 portas de acesso com plugues de silicone (Modelo 720: 80 mm, esquerdo e direito)
Dispositivo de segurança de temperatura ajustável independente Classe 2 (DIN 12880) com alarme visual
4 rodízios, dois com freios
Interface do computador: Ethernet
Tomada de alimentação de 230 V no painel de controle do lado direito (modelos 115, 240, 720)
Função de rampa ajustável
Registrador gráfico integrado
Relógio de tempo real
Aquecimento da porta
Notificação de alarme em caso de água insuficiente no tanque de água doce (Modelos 115, 240, 720)
Kit de conexão de segurança completo para abastecimento e drenagem de água, até 1 m de altura
Câmara interna feita de aço inoxidável
Refrigerante sem CFC R-452A
Resfriamento com unidade de resfriamento de compressor

Dados técnicos

Modelo MKF 56

Modelo MKF 115

Modelo MKF 240

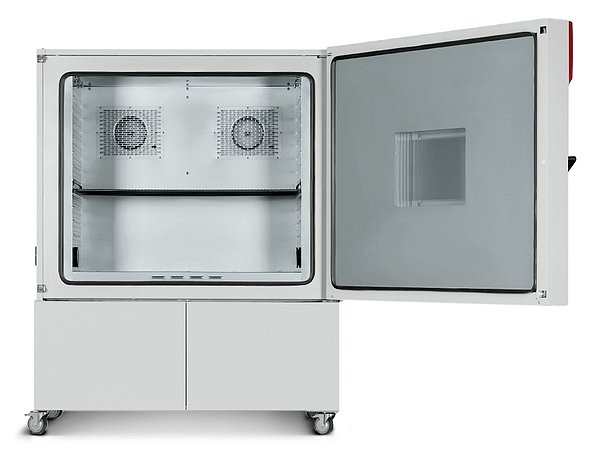

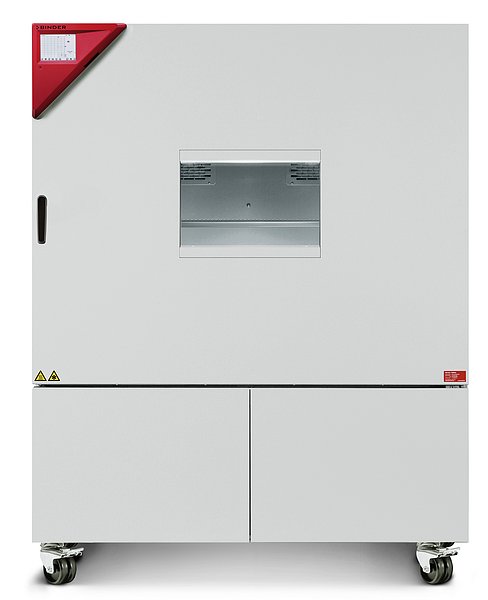

Modelo MKF 720

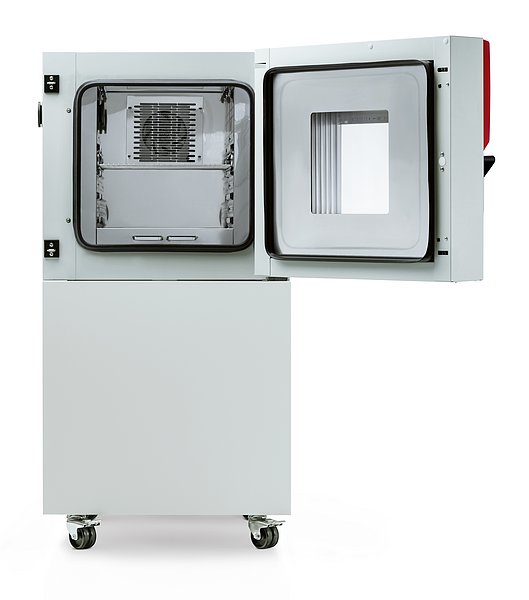

Modelo MKF 56

Designação	MKF056-230V¹	MKF056-240V¹
Modelo de opção	Padrão	Padrão
Número do pedido	9020-0378	9020-0389
Dados
Série	MKF	MKF
Temperatura de dados de desempenho
Tempo médio de resfriamento de acordo com IEC 60068-3-5 [K / min]	5	5
Taxa média de aquecimento de acordo com IEC 60068-3-5 [K / min]	5	5
Tempo de resfriamento de 180 ° C a -40 ° C [min]	90	90
Máx. compensação de calor a 25 ° C [W]	1200	1200
Flutuação de temperatura dependendo do ponto de ajuste [± K]	0,1… 0,5	0,1… 0,5
Faixa de temperatura	-40… 180	-40… 180
Variação de temperatura dependendo do ponto de ajuste [± K]	0,5… 1,5	0,5… 1,5
Clima de dados de desempenho
Faixa de temperatura do ponto de orvalho [° C]	5… 94	5… 94
Flutuação de umidade dependendo do ponto de ajuste	≤ 2,5 ±% UR	≤ 2,5 ±% UR
Faixa de umidade [% UR]	10… 98	10… 98
Flutuação de temperatura dependendo do ponto de ajuste [± K]	0,1… 0,5	0,1… 0,5
Faixa de temperatura [° C]	10… 95	10… 95
Dados elétricos
Potência nominal [kW]	2,8	2,8
Fase (tensão nominal)	1 ~	1 ~
Freqüência de energia [Hz]	50	60
Tensão nominal [V]	200… 230	200… 240
Fusível da unidade [A]	16	16
Portas
Portas da unidade	1	1
Dimensões da caixa não incl. acessórios e conexões
Rede de profundidade [mm]	780	780
Rede de altura [mm]	1445	1445
Largura líquida [mm]	720	720
Dimensões internas
Profundidade [mm]	348	348
Altura [mm]	420	420
Largura [mm]	400	400
Medidas
Volume interno [L]	60	60
Carga por rack [kg]	15	15
Peso líquido da unidade (vazio) [kg]	175	175
Carga permitida [kg]	60	60
Altura da janela de visualização [mm]	255	255
Largura da janela de visualização [mm]	288	288
Wall clearance back [mm]	300	300
Wall clearance sidewise [mm]	200	200
Environment-specific data
Sound-pressure level [dB(A)]	59	59
Fixtures
Number of shelves (std./max.)	1/4	1/4
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	5	5
Average heating-up rate according to IEC 60068-3-5 [K/min]	5	5
Cooling down time from 180 °C to -40 °C [min]	90	90
Max. heat compensation at 25 °C [W]	1200	1200
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.5…1.5	0.5…1.5
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	2.8	2.8
Phase (Nominal voltage)	1~	1~
Power frequency [Hz]	50	60
Rated Voltage [V]	200…230	200…240
Unit fuse [A]	16	16
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	30.73	30.73
Height net [in]	56.9	56.9
Width net [in]	28.37	28.37
Internal Dimensions
Depth [in]	13.71	13.71
Height [in]	16.55	16.55
Width [in]	15.76	15.76
Measures
Interior volume [cu.ft.]	2.1	2.1
Load per rack [lbs]	33	33
Net weight of the unit (empty) [lbs]	386	386
Permitted load [lbs]	132	132
Viewing window height [in]	10.05	10.05
Viewing window width [in]	11.35	11.35
Wall clearance back [in]	11.82	11.82
Wall clearance sidewise [in]	7.88	7.88
Environment-specific data
Sound-pressure level [dB(A)]	59	59
Fixtures
Number of shelves (std./max.)	1/4	1/4

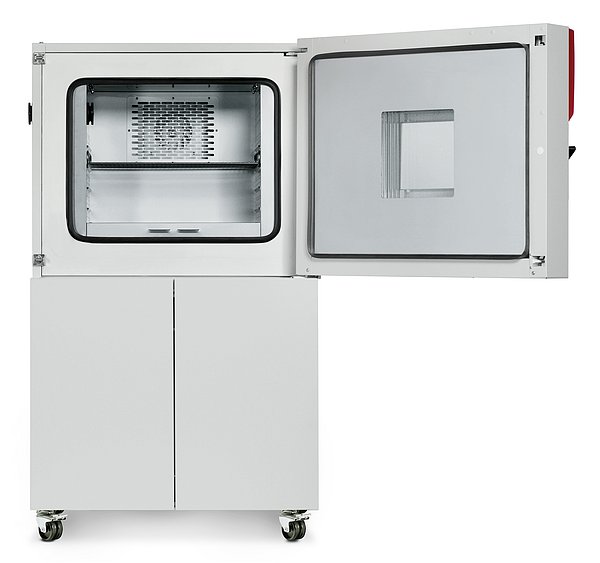

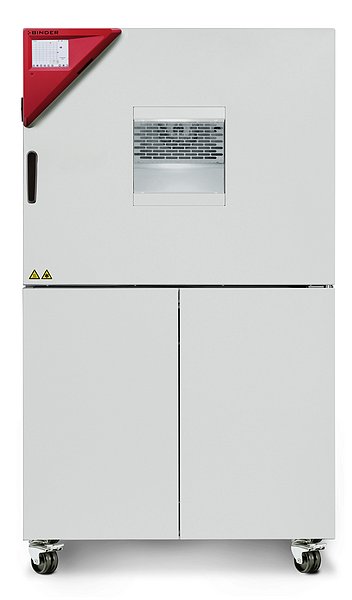

Modelo MKF 115

Designation	MKF115-400V¹	MKF115-480V-C¹
Option model	Standard	with voltage and frequency converter
Order number	9020-0379	9020-0357
Data
Serie	MKF	MKF
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	4.5	4.5
Average heating-up rate according to IEC 60068-3-5 [K/min]	5.5	5.5
Cooling down time from 180 °C to -40 °C [min]	100	100
Max. heat compensation at 25 °C [W]	2100	2100
Temperature fluctuation depending on setpoint [± K]	0.1…0.6	0.1…0.6
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	4.8	4.8
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	16	16
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	865	865
Height net [mm]	1725	1725
Width net [mm]	980	980
Internal Dimensions
Depth [mm]	400	400
Height [mm]	480	480
Width [mm]	600	600
Measures
Interior volume [L]	115	115
Load per rack [kg]	30	30
Net weight of the unit (empty) [kg]	280	214
Permitted load [kg]	60	60
Viewing window height [mm]	222	222
Viewing window width [mm]	288	288
Wall clearance back [mm]	300	300
Wall clearance sidewise [mm]	200	200
Environment-specific data
Sound-pressure level [dB(A)]	62	67
Fixtures
Number of shelves (std./max.)	1/4	1/4
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	4.5	4.5
Average heating-up rate according to IEC 60068-3-5 [K/min]	5.5	5.5
Cooling down time from 180 °C to -40 °C [min]	100	100
Max. heat compensation at 25 °C [W]	2100	2100
Temperature fluctuation depending on setpoint [± K]	0.1…0.6	0.1…0.6
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	4.8	4.8
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	16	16
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	34.08	34.08
Height net [in]	68	68
Width net [in]	38.61	38.61
Internal Dimensions
Depth [in]	15.76	15.76
Height [in]	18.91	18.91
Width [in]	23.64	23.64
Measures
Interior volume [cu.ft.]	4.1	4.1
Load per rack [lbs]	66	66
Net weight of the unit (empty) [lbs]	617	472
Permitted load [lbs]	132	132
Viewing window height [in]	8.75	8.75
Viewing window width [in]	11.35	11.35
Wall clearance back [in]	11.82	11.82
Wall clearance sidewise [in]	7.88	7.88
Environment-specific data
Sound-pressure level [dB(A)]	62	67
Fixtures
Number of shelves (std./max.)	1/4	1/4

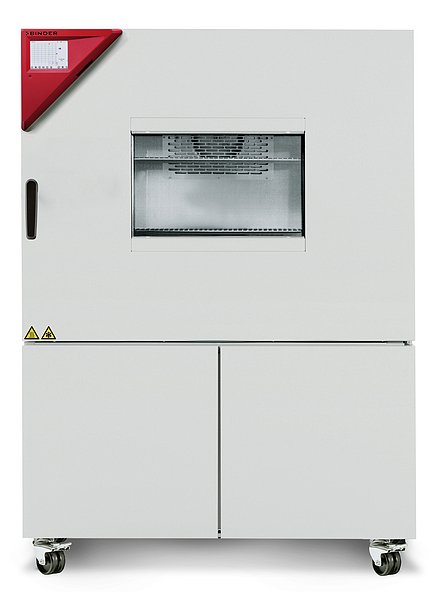

Modelo MKF 240

Designation	MKF240-400V¹	MKF240-480V-C¹
Option model	Standard	with voltage and frequency converter
Order number	9020-0380	9020-0358
Data
Serie	MKF	MKF
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	5	5
Average heating-up rate according to IEC 60068-3-5 [K/min]	5	5
Cooling down time from 180 °C to -40 °C [min]	120	120
Max. heat compensation at 25 °C [W]	2800	2800
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.5	0.1…1.5
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	6.8	6.8
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	16	16
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	925	925
Height net [mm]	1715	1715
Width net [mm]	1115	1115
Internal Dimensions
Depth [mm]	443	443
Height [mm]	700	700
Width [mm]	735	735
Measures
Interior volume [L]	228	228
Load per rack [kg]	30	30
Net weight of the unit (empty) [kg]	360	269
Permitted load [kg]	70	70
Viewing window height [mm]	300	300
Viewing window width [mm]	508	508
Wall clearance back [mm]	300	300
Wall clearance sidewise [mm]	200	200
Environment-specific data
Sound-pressure level [dB(A)]	65	67
Fixtures
Number of shelves (std./max.)	1/6	1/6
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	5	5
Average heating-up rate according to IEC 60068-3-5 [K/min]	5	5
Cooling down time from 180 °C to -40 °C [min]	120	120
Max. heat compensation at 25 °C [W]	2800	2800
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.5	0.1…1.5
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.1…1.3	0.1…1.3
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	6.8	6.8
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	16	16
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	36.45	36.45
Height net [in]	67.6	67.6
Width net [in]	43.9	43.9
Internal Dimensions
Depth [in]	17.45	17.45
Height [in]	27.58	27.58
Width [in]	28.96	28.96
Measures
Interior volume [cu.ft.]	8	8
Load per rack [lbs]	66	66
Net weight of the unit (empty) [lbs]	794	593
Permitted load [lbs]	154	154
Viewing window height [in]	11.82	11.82
Viewing window width [in]	20.02	20.02
Wall clearance back [in]	11.82	11.82
Wall clearance sidewise [in]	7.88	7.88
Environment-specific data
Sound-pressure level [dB(A)]	65	67
Fixtures
Number of shelves (std./max.)	1/6	1/6

Modelo MKF 720

Designation	MKF720-400V¹	MKF720-480V-C¹
Option model	Standard	with voltage and frequency converter
Order number	9020-0381	9020-0359
Data
Serie	MKF	MKF
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	4.8	4.8
Average heating-up rate according to IEC 60068-3-5 [K/min]	4.8	4.8
Cooling down time from 180 °C to -40 °C [min]	120	120
Max. heat compensation at 25 °C [W]	5800	5800
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.8	0.1…1.8
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.2…1.5	0.2…1.5
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	11	11
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	32	32
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	1140	1140
Height net [mm]	2005	2005
Width net [mm]	1580	1580
Internal Dimensions
Depth [mm]	600	600
Height [mm]	1020	1020
Width [mm]	1200	1200
Measures
Interior volume [L]	734	734
Load per rack [kg]	40	40
Net weight of the unit (empty) [kg]	590	862
Permitted load [kg]	160	160
Viewing window height [mm]	300	300
Viewing window width [mm]	508	508
Wall clearance back [mm]	300	300
Wall clearance sidewise [mm]	200	200
Environment-specific data
Sound-pressure level [dB(A)]	65	67
Fixtures
Number of shelves (std./max.)	1/11	1/11
Performance Data Temperature
Average cooling down time according to IEC 60068-3-5 [K/min]	4.8	4.8
Average heating-up rate according to IEC 60068-3-5 [K/min]	4.8	4.8
Cooling down time from 180 °C to -40 °C [min]	120	120
Max. heat compensation at 25 °C [W]	5800	5800
Temperature fluctuation depending on setpoint [± K]	0.1…0.5	0.1…0.5
Temperature range	-40…180	-40…180
Temperature variation depending on setpoint [± K]	0.1…1.8	0.1…1.8
Performance Data Climate
Dew point temperature range [°C]	5…94	5…94
Humidity fluctuation depending on setpoint	≤2,5 ± % RH	≤2,5 ± % RH
Humidity range [% RH]	10…98	10…98
Temperature fluctuation depending on setpoint [± K]	0.2…1.5	0.2…1.5
Temperature range [°C]	10…95	10…95
Electrical data
Nominal power [kW]	11	11
Phase (Nominal voltage)	3~	3~
Power frequency [Hz]	50	60
Rated Voltage [V]	400	480
Unit fuse [A]	32	32
Doors
Unit doors	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	44.9	44.9
Height net [in]	79	79
Width net [in]	62.3	62.3
Internal Dimensions
Depth [in]	23.64	23.64
Height [in]	40.2	40.2
Width [in]	47.3	47.3
Measures
Interior volume [cu.ft.]	25.9	25.9
Load per rack [lbs]	88	88
Net weight of the unit (empty) [lbs]	1301	1900
Permitted load [lbs]	353	353
Viewing window height [in]	11.82	11.82
Viewing window width [in]	20.02	20.02
Wall clearance back [in]	11.82	11.82
Wall clearance sidewise [in]	7.88	7.88
Environment-specific data
Sound-pressure level [dB(A)]	65	67
Fixtures
Number of shelves (std./max.)	1/11	1/11

Boletim & Promoções

Inscreva-se no nosso boletim informativo para se manter atualizado.

Cookie	Duração	Descrição
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

Carrinho de Compras

Categorias

Grandes marcas

Segmentos

Alpax

Categorias

Grandes marcas

Segmentos

Alpax

Categorias:

Segmentos:

Câmara climática dinâmica – MKF

Dados técnicos

Boletim & Promoções

Televendas

(11) 4057-9200

Nós usamos

Pagamentos Seguros

Institucional

Links Rápidos

Alpax © 2023 - Desenvolvido por Shiftmind Marketing Digital B2B

Carrinho de Compras

Categorias

Grandes marcas

Segmentos

Alpax

Categorias

Grandes marcas

Segmentos

Alpax

Categorias:

Segmentos:

Câmara climática dinâmica – MKF

Dados técnicos

Outros Produtos

Boletim & Promoções

Televendas

(11) 4057-9200

Nós usamos

Pagamentos Seguros

Institucional

Links Rápidos

Alpax © 2023 - Desenvolvido por Shiftmind Marketing Digital B2B
